MBM Triumph 6655 Automatic Programmable Cutter
Features
– Electric Paper Cutter
– Cutting Width: 25 1/2″
– Cutting Height: 3″
– Length Behind Blade: 24″
– Narrow Cut: 1″
– Clamp Type: Automatic
Characteristics
• Programmable cutter with automatic clamp, power back gauge, and digital touchpad
• Ergonomic, 37" working height
• Electric blade and clamp drive
• Electric back gauge drive with touchpad for easy programming
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Pre-programmed for standard paper sizes
• Memory key for repeat cuts
• Automatic set function for reference measurement and eject function for pushing out paper
• Self-diagnostic system with error indication on display
• Electronic hand wheel with variable speed control for manual back gauge setting
• Bright, LED optical cutting line
• Adjustable, spindle-guided back gauge with narrow separations and plastic gliders
• Dual side guides on front and rear tables
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper-blocking tool
• Optional side tables increase work surface
• UL and C UL approved
Safety Features
• Patented EASY CUT electronic blade activation bars for true two-hand operation

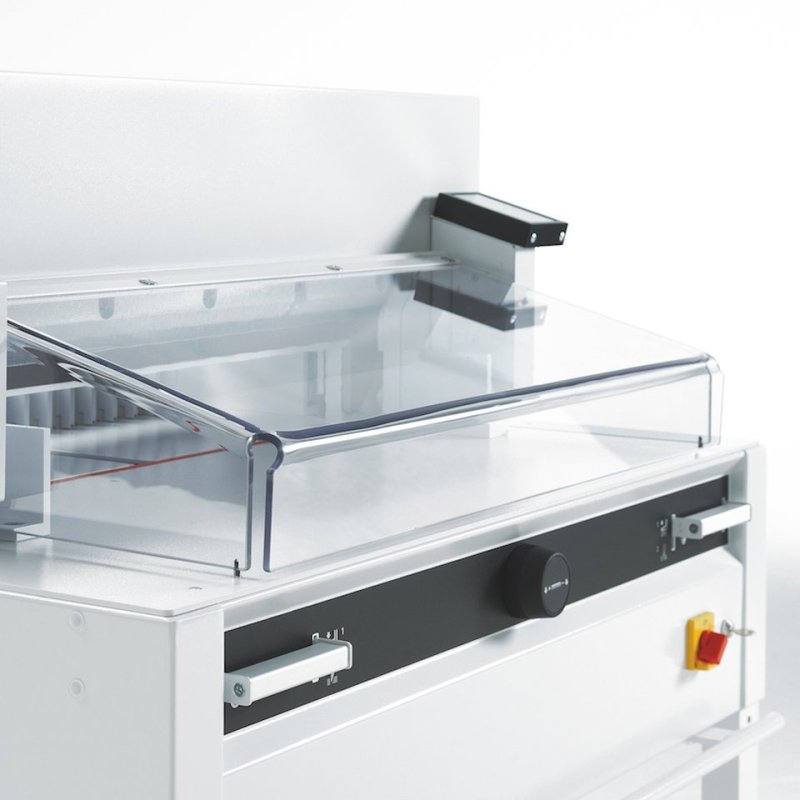

• Transparent, electronically controlled front safety guard
• Safety cover on rear table
• Main switch and safety lock with key
• 24-volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade return from every position
• Disc brake for instant blade stop
• Blade changing device covers the cutting edge of the blade
• Blade depth adjustment from outside of the machine
• Blade and cutting stick can be changed without removing covers
