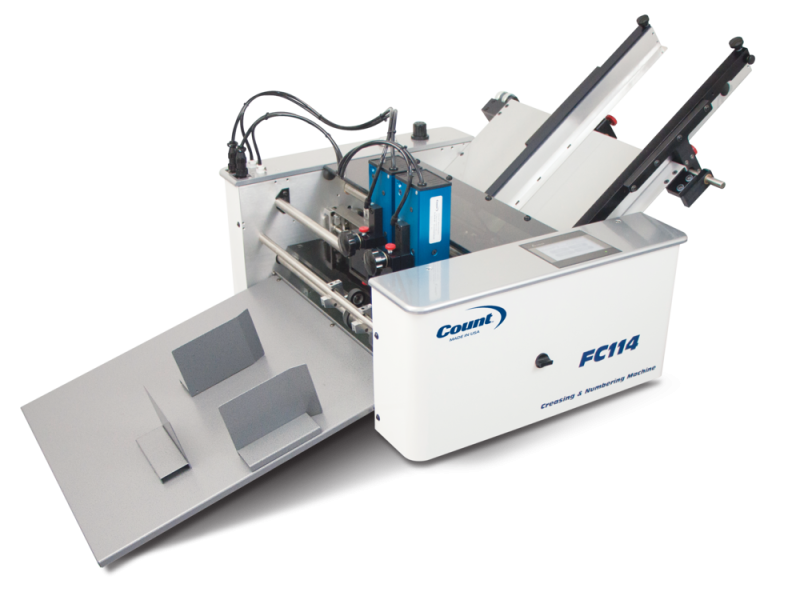

Martin Yale Count FC114 Creasing, Perforating, and Numbering System
With the investment in a single machine, you can handle high-quality creasing, perforating, and numbering all in one. The FC114 has a reliable friction paper feed system. It delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus perforating and optional micro-perforating. It’s a compact, incredibly easy to use, and highly versatile “all in one” solution that includes automatic “one-touch” setups.
FEATURES
Reliable top friction feed system.
Simple programming allows you to crease, number, or perforate individually.
User-friendly touch screen for easy setup and control of the machine.
Includes micro-laterally adjustable feed rails and sheet counter (batch and total counting).
Creasing
CAM actuated compression creasing.
Two-sided die creasing rod accommodates heavier stock-simply remove and flip over to change from narrow to wide crease.
Accommodates inline folders like the KF-200.
Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
Perf/Scoring
Complete perforating assembly included, with linear perf capabilities up to 4 perfs per sheet.
Optional micro-perf and score wheel assemblies are available.
Numbering
Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros, and 4 repeats.
Flexibility to apply for numbers virtually anywhere on a sheet–from the lead edge, place numbers within 1 mm of the previous number.
Number single sheets, or crash numbers up to a 10-part carbonless form.
SPECIFICATIONS
Rating |
Better |
Creasing Speed |
4,500 sheets / hour |
Perf/Scoring Speed |
12,000 sheets / hour |
Numbering Speed |
8,000 sheets / hour |
Feed Type |
Friction Top |
Volume |
Low - High |
Paper Weight |
60 - 350 gsm |
Max Sheet Size |
18" x 24" |
Min Sheet Size |
6" x 4.5" |
Power Supply |
110/220 W 50/60 Hz |
Dimensions |
44" x 44" x 32" |
Machine Weight |
150 lbs |
Shipping Weight |
297 lbs |
